Update NC Procedure Parameters from the Cutter dialog
Motion and Machine parameters for specific cutters can be entered in the Cutter dialog.
The Motion and/or Machine parameters in an NC procedure can be updated with the parameter values from the Cutter dialog using the popup submenu.
To use the cutter-specific machine parameters:
-

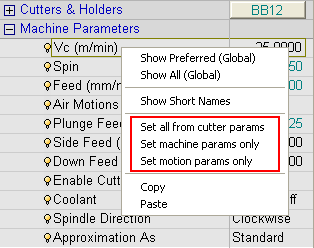

Right-click on the Parameter section of the NC procedure to display the popup submenu:
-
Select one of the following options:
|
Set all from cutters params |
Set all the relevant NC procedure parameters according to the values in the Machine and Motion Parameter tabs of the Cutters & Holders dialog. |
|
Set machine params only |
Set the relevant Machine Parameters in the NC procedure according to the values in the Machine Parameter tab of the Cutters & Holders dialog. |
|
Set motion params only |
Set the relevant Motion Parameters in the NC procedure according to the values in the Motion Parameter tabs of the Cutters & Holders dialog. |
The relevant Motion and/or Machine Parameters in the NC procedure are set according to the values in the Motion and/or Machine Parameter tabs of the Cutters & Holders dialog.
|
