Preview Pocket
Access: Press the Preview button
on the Work Mode Dialog when a procedure is open. Then hide/show
the Pocket.
Hide or Show (/) a preview of the pocket parameters, showing the toolpath. The preview is displayed within the Containment and at the Containment plane.

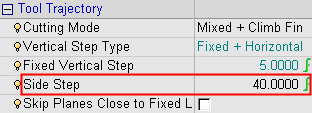

The preview is influenced by defining Spiral or Parallel and also by the Side Step value [example dialogexample dialog].
The following display characteristics of the cutter and holder can also be defined:
-
Color.
Note: The Pocket is a schematic drawing, not talking into account the following parameters: True Spiral, Round Corners, Clean Between Passes.
