Automated Drill: Using the Cutter Manual Preview

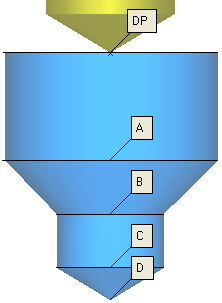

The cutter manual preview is used to display the cutter at the following defined locations:
Top. Ref. ± Top. Delta
Bot. Ref. ± Bot. Delta
Top. Ref. ± Top. Delta (including Chamfer diameter)
The following examples of the manual preview are shown below:
Display the cutter at the Top. Ref. DP = 0 position
Display the cutter at the Bot. Ref. B = 0 position
Display the cutter at the Top. Ref. DP = -1.647 position
Display the cutter at the Bot. Ref. B = 0.568 position
Display the cutter at the Bot. Ref. B = 0 , Chamfer = 1.3 position
Only one top position cutter can be displayed
Multiple bottom position cutters can be displayed

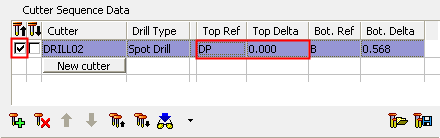

Display the cutter at the Top. Ref. DP = 0 position:
|
|
|

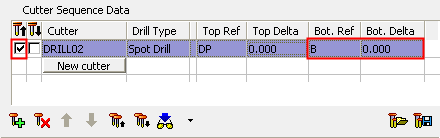

Display the cutter at the Bot. Ref. B = 0 position:
|
|
|
Display the cutter at the Top. Ref. DP = -1.647 position:
|
|
|

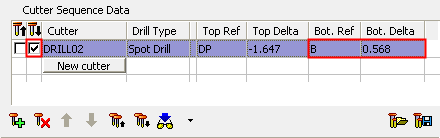

Display the cutter at the Bot. Ref. B = 0.568 position:
|
|
|

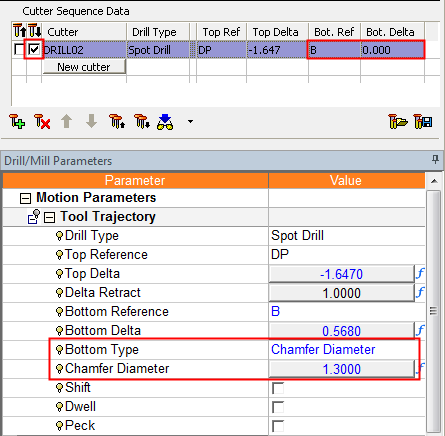

Display the cutter at the Bot. Ref. B = 0 , Chamfer = 1.3 position:
|
|
|

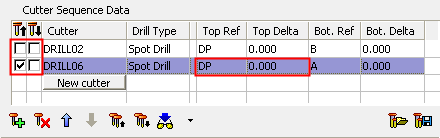

Only one top position cutter can be displayed:
|
|
|

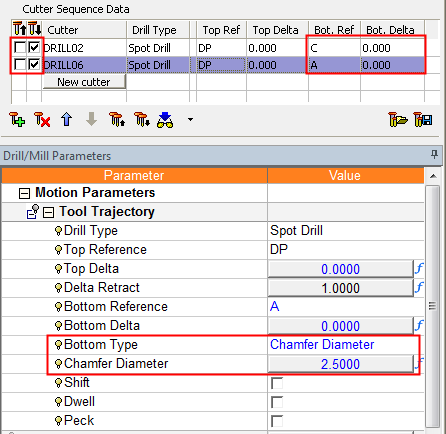

Multiple bottom position cutters can be displayed:
|
|
|

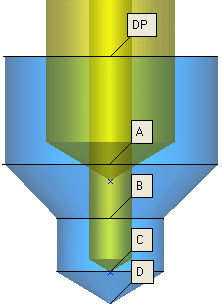

Note: You can use the display of multiple bottom position cutters to check that the sequence you have defined fully covers the hole and is not gouging anything. Since the cutters are displayed with different degrees of transparency, you can see all the cutters and check if their silhouettes fill the hole without gouges.
|
