Process Manager: Expand/Collapse Tree
Access: Open this function from one of the following locations:
from the The NC Process Manager consists of a collapsible tree containing detailed information of all toolpaths and their procedures. In addition, the Process Manager displays the status of each toolpath and procedure by using status flags and symbols.
Expand or collapse individual toolpaths or the whole Process Manager tree for clarity.
|
|
Collapse All |
Collapse the Procedure Tree in the NC Process Manager. This function is displayed if an NC file is active.
|
|
|
Expand All |
Expand the Procedure Tree in the NC Process Manager. This function is displayed if an NC file is active.
|
To expand or collapse individual toolpaths, click the + or - icons adjacent to a toolpath name.
To expand or collapse all toolpaths, use the Expand All or Collapse All functions available under the View > Toolpath Tree menu.

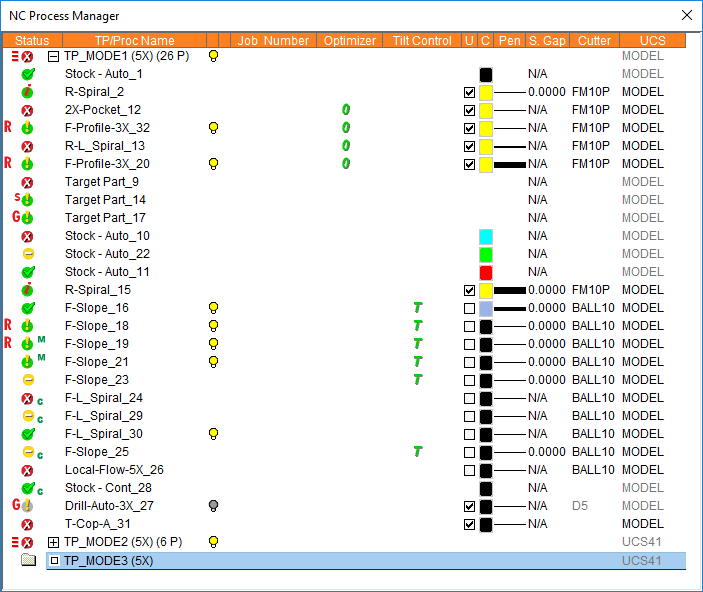

Expanded Process Manager

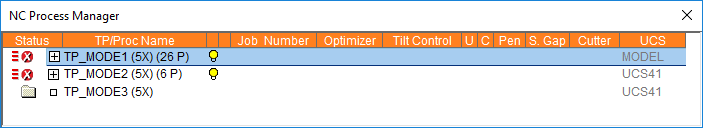

Collapsed Process Manager
|
