Initial System Window

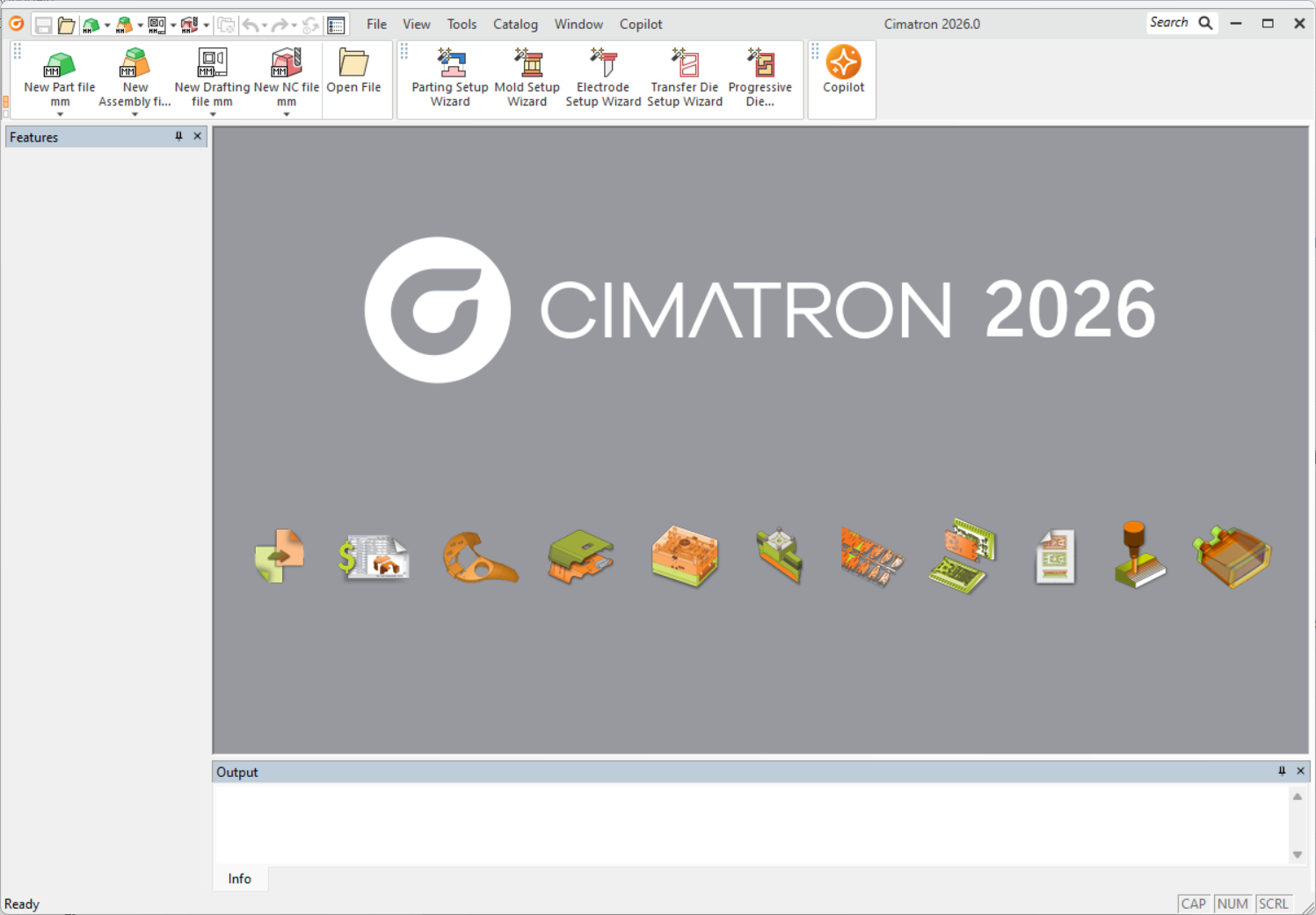

When Cimatron is launched and no files are open, the display looks like this.

Click on an item in the dialog for a description.

Status BarOutput PaneGraphics PaneTree PaneToolbarsSearch BarFile NameMenu BarQuick Access Toolbar

Note: The display of some of the elements that make up the system window (such as the menu bar, toolbars and trees) depend on which type of file (Part, Assembly, Drafting, or NC Manufacturing) is currently active in the system window.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
