Report Pictures

These are the pictures that appear in the NC Report when using the Standard option of the NC Report. The types of pictures that can be defined, are listed below.

The process of including a picture in the NC Report depends on the type of picture, however, the general rule is:

  1. Design the template of the Report.
  2. Capture the master pictures to be included in the Report. The pictures should be of the required size (without scaling) and given the names described in the table below. During the Report creation process, these master pictures are automatically replaced by the ones captured by the user. However, if for some reason replacement pictures were not found, the master pictures remain in the Report.

  3. Define the master picture names and sizes in the NcReportImage.xmlNcReportImage.xml file.

    The NcReportImage.xml file is located in the following folder:

    ...\ProgramData\Cimatron\Cimatron\2026.0\Data

    The NcReportImage.xml file is located in the following folder:

    ...\ProgramData\Cimatron\Cimatron\2026.0\Data

    The NcReportImage.xml file is located in the following folder:

    ...\ProgramData\Cimatron\Cimatron\2026.0\Data

  4. Insert the master pictures into the <Report_name>.Setup.mht and/or <Report_name>.Tools.mht template file.

    The <Report_name>.Setup.mht and <Report_name>.Tools.mht template files are located in the following folder:

    ...\ProgramData\Cimatron\Cimatron\2026.0\Data\Nc\Customized Reports

    The <Report_name>.Setup.mht and <Report_name>.Tools.mht template files are located in the following folder:

    ...\ProgramData\Cimatron\Cimatron\2026.0\Data\Nc\Customized Reports

    The <Report_name>.Setup.mht and <Report_name>.Tools.mht template files are located in the following folder:

    ...\ProgramData\Cimatron\Cimatron\2026.0\Data\Nc\Customized Reports

The following types of pictures can be defined:

Permanent

This picture is not changed when producing a report (for example a company logo).

To include this type of picture in the report:

  1. Capture the picture.

  2. Insert the picture in the required place.

  3. This picture can be given any name, but should not include the string defining changeable pictures (see below).

This picture can be displayed anywhere in the report.

Default

This picture is automatically created when the user runs NC Report using the Standard option.

To include this type of picture in the report:

  1. Capture the picture and save it with the following name:
    NcReportGeneralImage@Default.jpg    .

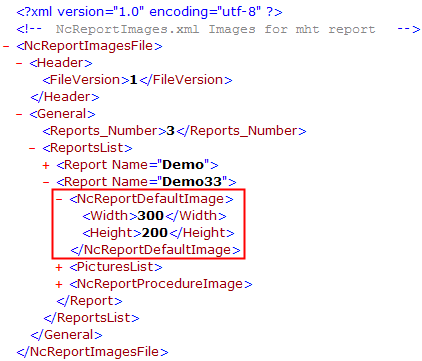

  2. Define the picture name and size in the NcReportImage.xmlNcReportImage.xml file. The width and height sets the dimension of the black frame in the graphics area when using the Standard template of the NC Report.

  3. Insert the picture in the required place.

This picture can be displayed anywhere in the report.

Pictures List

These are additional pictures that are included as per customer request (for example ISO picture, Standard Views, Stock Used, etc.).

These pictures are captured by the user via the Capture Report Images tool.

To include this type of picture in the report:

  1. Define the picture name(s); i.e. Initial_Stock.

  2. Capture each required picture and save it with the following name:
    NcReportGeneralImage@<defined_name>    ; i.e. NcReportGeneralImage@Initial_Stock.

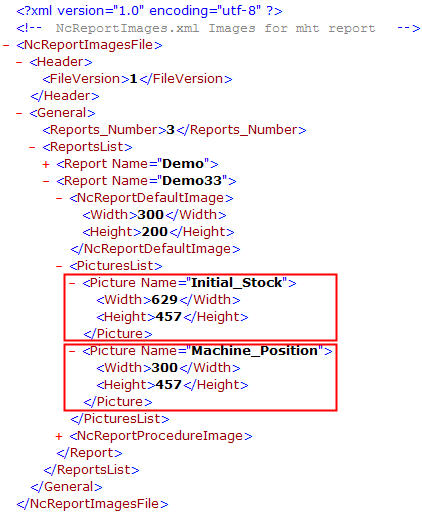

  3. Define each picture name and size in the NcReportImage.xmlNcReportImage.xml file. The width and height sets the dimension of the black frame in the graphics area when using the Standard template of the NC Report.

  4. Insert the picture(s) in the required place(s).

These pictures can be displayed anywhere in the report.

Procedure Pictures

This picture type is currently not supported.

This is a procedure-specific picture that appears in each procedure data row in the body of the report.

These pictures are captured by the user via the Capture Report Images tool.

To include this type of picture in the report:

  1. Capture the picture and save it with the following name:
    NcReportProcedureImage    .

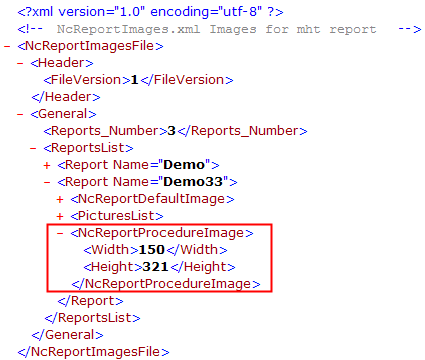

  2. Define the picture name and size in the NcReportImage.xmlNcReportImage.xml file. The width and height sets the dimension of the black frame in the graphics area when using the Standard template of the NC Report.

  3. Insert the picture in the required place in the procedure data row.

The captured images are saved in the following folder:

...\ProgramData\Cimatron\Cimatron\2026.0\Data\Nc\Report_Images\<elt_file_name>

Note: Because a folder containing images is created every time you capture an image, we recommend you delete these folders when they are not required.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
