Sample Toolpath Listing
Procedure Header List
PROCEDURE HEADER LIST
------------------------------------------
PART FILE NAME: "app_a"
MACSYS NAME : "MM "
|
TOOL PATH NAME= REPORT LEVEL= REP_NC UCS= REPORT TYPE= MILL 3X |
||
|
---- PROFILE = 1 |
OUTER CONTOUR |
---- TOOL= D30 |
|
---- PROFILE = 2 |
TOP CIRCLE - OUT |
---- TOOL= D35-R5 |
|
---- DRILL = 3 |
CENTER DRILL POCKET |
|
|
---- DRILL = 4 |
DEEP DRILL POCKET |
|
|
---- POCKET = 5 |
POCKET-INSIDE FINISH |
C- TOOL= D25 |
Toolpath Listing
TOOL PATH LISTING
=================
PART FILE NAME: "app_a"
BLOCK
NUMBER BLOCK DESCRIPTION
------ ------------------
0 HEADER
MACSYS NAME : "MM "
TOOL PATH LEVEL : "REP_NC"
TOOL PATH NAME : "REPORT "
MACHINE TYPE : "MILL 3X "
(NOTE: The Tool Path origin is expressed in the MACSYS
coordinate system! All other points are expressed
relative to the active origin.)

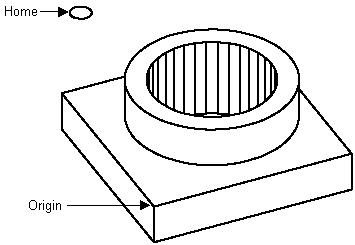

TOOL PATH ORIGIN: X = 0.0000 Y = 100.0000 Z = 70.0000
HOME : X = 0.0000 Y = 0.0000 Z = 0.0000
UCS NAME : "REPORT"
2 PROCEDURE NUMBER = 2
CREATION DATE: 26/04/95.09:08:17
FUNCTION NAME: "PROFILE "
COMMENT : "TOP CIRCLE - OUT "
2- 0 OPEN REGION 1
2- 1 MACHINE PARAMS: FEED = FAST
2- 2 MACHINE PARAMS: SPIN = 1000 CW
2- 3 MACHINE PARAMS: COOL = OFF
2- 4 MACHINE PARAMS: VC = 30.00 CW
2- 5 MACHINE PARAMS: UCS = REPORT
2- 6 MACHINE PARAMS: TOOL = D35-R5
SIMPLE LINES:
2- 7 X = 139.0000 Y = -20.0000 Z = 0.0000
2- 8 X = 139.0000 Y = -20.0000 Z = -19.0000
2- 9 MACHINE PARAMS: FEED = 105.00
SIMPLE LINES:
2- 10 X = 139.0000 Y = -20.0000 Z = -40.0000
2- 11 OPEN LAYER (Z=-40.00)
2- 12 MACHINE PARAMS: FEED = 350.00
SIMPLE LINES:
2- 13 X = 139.0000 Y = -20.0000 Z = -40.0000
2- 14 OPEN PASS
2- 15 OPEN APPROACH (TYPE=TAN. )
2- 16 MACHINE PARAMS: CUT.COM_= NOT IN USE
SIMPLE LINES:
2- 17 X = 137.5000 Y = -20.0000 Z = -40.0000
2- 18 SIMPLE ARC:
ARC PLANE = XY
ARC ANGLE = 1.57
ARC CENTER X = 137.5000 Y = -50.0000
ARC END X = 107.5000 Y = -50.0000 Z = -40.0000
2- 19 CLOSE APPROACH
2- 20 OPEN CONTOUR
2- 21 SIMPLE ARC:
ARC PLANE = XY
ARC ANGLE = -6.28
ARC CENTER X = 50.0000 Y = -50.0000
ARC END X = 107.5000 Y = -50.0000 Z = -40.0000
2- 22 CLOSE CONTOUR
2- 23 OPEN RETRACT (TYPE=NOR. )
2- 24 MACHINE PARAMS: CUT.COM_= NOT IN USE
SIMPLE LINES:
2- 25 X = 112.5000 Y = -50.0000 Z = -40.0000
2- 26 CLOSE RETRACT
2- 27 CLOSE PASS
.
.
.
.
.
.
END PROCEDURE NUMBER 2
------------------------------------------------------
END OF TOOL PATH
|
