Save Configuration: Optional Components

Access: Select MoldDesign > Mold Tools > Save Configuration from the menu bar.

Define the optional components to be loaded with the configuration.

  1. The system automatically prompts you for the specific component that is to be associated with a component name, or you can use the dropdown list to select the component.
    Click Select.

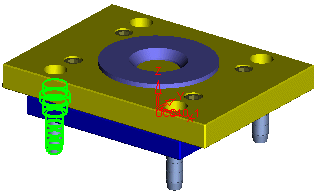

  1. Pick the component in the mold that is to be associated with the appropriate component (in this case Leader Pin).

The component is entered into the configuration. Note that the component was recognized as a Fixed Side component.

The Optional Components area will eventually contain all the optional components in the mold configuration.
