Save Configuration: Plate Names

Access: Select MoldDesign > Mold Tools > Save Configuration from the menu bar.

Define the specific plate (catalog number) that is associated with a plate name.

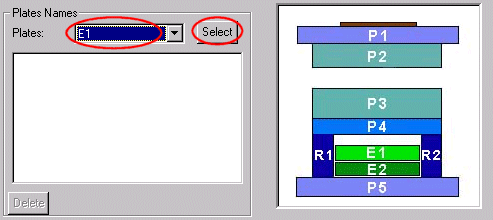

  1. The system automatically prompts you for the specific plate that is to be associated with a plate name, or you can use the pull down to select the plate.
    Click Select.

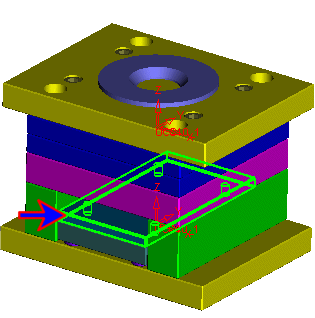

  1. Using the plate diagram (above) as a prompt, pick the specific plate in the mold that is to be associated with the appropriate plate name (in this case plate E1).

The picked plate (E1) is entered into the configuration and the plate information is displayed (plate type and location within the assembly file).

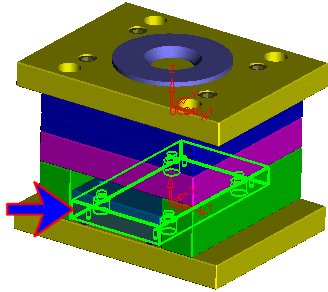

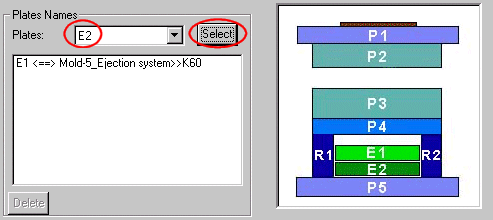

  1. The system then automatically prompts you for the next plate. Click Select and pick the next plate (E2).

The plate is entered into the configuration.

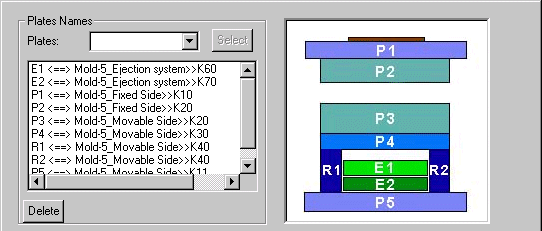

The Plate Name area will eventually contain all the plates in the mold configuration.
