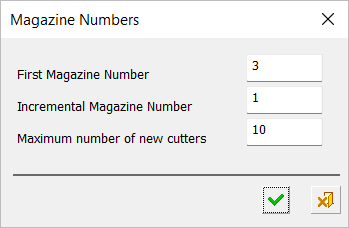

Magazine Numbers dialog
Specifies the magazine numbers for new cutters in the Multi Cutters by Tool Life function.
Parameters
|
First Magazine Number |
Enter the first magazine number for the newly created cutter. The valid entry range is 1 to 99999999. |
|
Incremental Magazine Number |
Enter a value to increment the magazine number. The default value is 1. The valid entry range is 1 to 1000. |
|
Maximum Number of New Cutters |
Enter a value for the maximum number of new cutters. The default value is 10. The valid entry range is 1 to 99. |
Note: A postfix is added to the original cutter name to generate the new cutter name.
