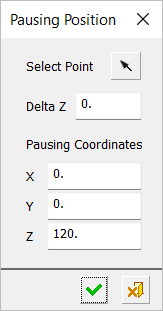

Pausing Position dialog
For the Multi Cutters by Tool Life function, use this dialog to move the tool to a specific point and set the pausing position to allow the operator to replace inserts.
Parameters
|
Select Point |
Select a point on the part to move the tool, which will be indicated by a RED plus sign symbol |
|
Delta Z |
Enter value for the Delta Z above the selected point. |
|
Pausing Coordinates |

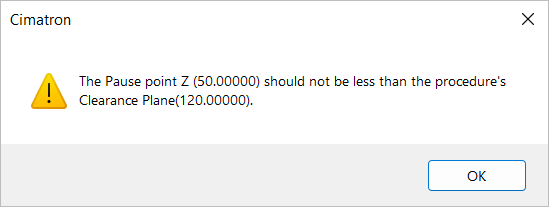

Enter a value for the X, Y, and Z pausing coordinates. Important! The Pausing Coordinate value for Z should not be less than the procedure's Clearance Plane. If it is, the following message will appear. Update the value and click OK
|
.
.
