Remove Cooling Circuit
Access: Open this function from one of the following locations:
-
Select Mold Design > Cooling > Remove Cooling Circuit from the menu bar.
-
Select Cooling > Remove Cooling Circuit from the Mold Design Guide Toolbar.
Remove the holes of connected cooling lines. This enables you to quickly edit cooling systems.

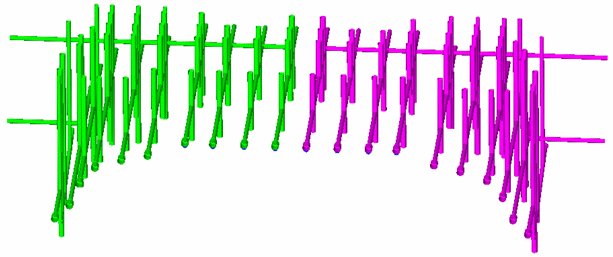

The following picture shows cooling channels with 2 circuits. One or both of these circuits can be selected to be removed.
General Interaction
The following is the Feature Guide for Remove Circuit.
|
|
|
Tip: You can open the Feature Guide at any time by right-clicking the mouse in the graphic display area.Required Step 1
: Pick the cooling channels to be removed.
Detailed Interaction
See Options and Results.
