Drawing Tree

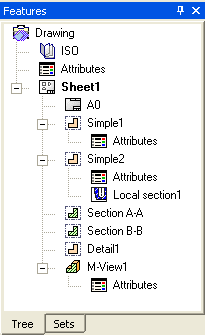

The drawing tree is a hierarchical structure which displays all the main drawing components. They are accessed and edited by double-clicking on the required component. If a view item is selected, the corresponding view in the graphical area is highlighted.
