Link - Retract Distances

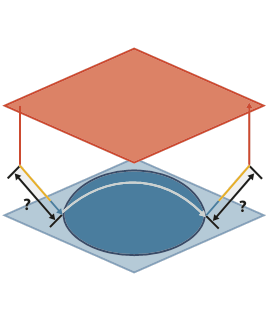

Rapid
The retract is performed based on the move direction.
If there is an angle, the plane is rotated along the axis determined by the vector product.
The feed rate between the Rapid and Feed distances is rapid.

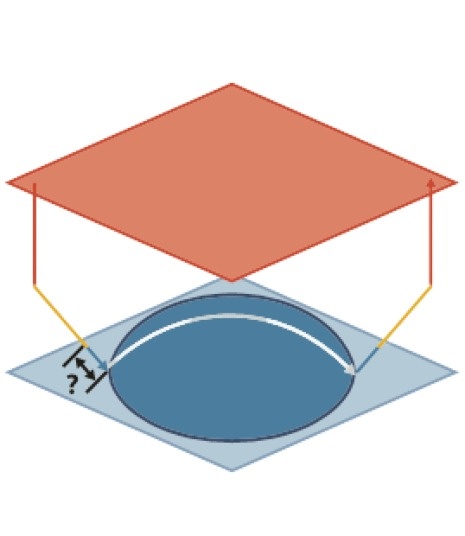

Entry/Exit Feed
The tool approaches the surface from a distance with the plunge feed rate defined by the user.
The value for Entry feed distance can be set independently or combined with the Exit Feed distance.

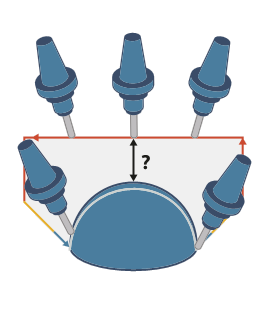

Air Move Safe
Minimum safe distance, applied under the tool (down the tool axis), between the tool air movements and the drive or check surfaces.
Rapid Distance in tool plane
The tool will retract along its plane until it reaches the Rapid Distance plane height.
