Allow flipping side direction
If this value is false then the side direction for tilting the tool to the side is defined by the order of cuts.

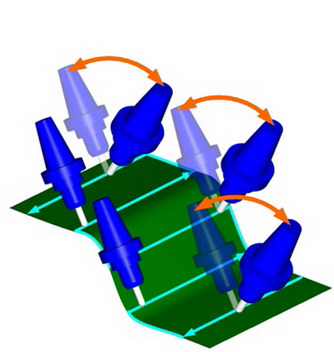

If this parameter is true then the side direction is changed based on the current cutting direction (the tool will always tilt to right or left dependent on the cutting direction).
Notes:
-
This option only is available in case of 'zig zag' cutting method combined with the tool axis orientation 'tilted relative to cutting direction'.
-
It also works together with 'Gradual lead angle change' and 'Gradual side tilt angle change'.
File Example

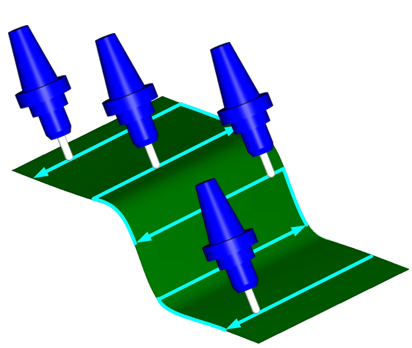

Allow flipping side direction deactivated. You see that the tool orientation will be kept all along its path.

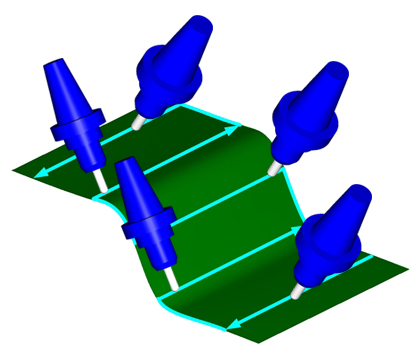

Allow flipping side direction activated. The tool flips its orientation with every new cut.
