Table of Holes: Header Style & Location

Edit the appearance of a Table of Holes (TOH).

If required, you can change the location of the header in the table. By default, the header is located at the bottom of the table. In addition, you can set the text properties of the header.

• Header Location
• Header/Text Style

Change the location of the TOH header

1. Double-click the TOH to display the Table of Holes dialog.

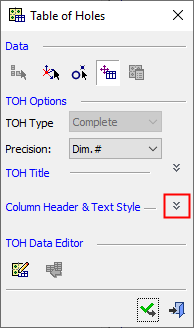

2. Press the appropriate expand button to display the Column Header & Text Style options.

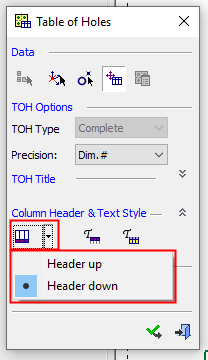

3. Press the Header Location button dropdown list (highlighted below) and select the required option.





   The changes are immediately implemented in the Table of Holes.

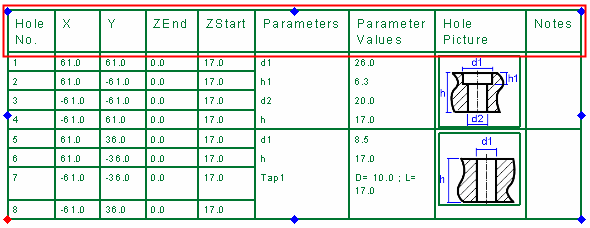

   • Example of Header UpExample of Header Up

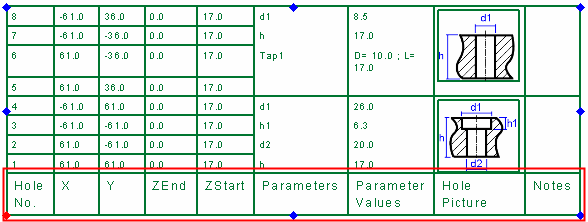

   • Example of Header DownExample of Header Down



   Note: The Header Location button shows you the location of the header by changing according to the header position. When the header is down, the button is displayed as . When the header is up, the button is displayed as .

Change the header and/or text styles of the table

If required, you can change the header and text styles of the table.

1. Double-click the TOH to display the Table of Holes dialog.
2. Press the appropriate expand button to display the Column Header & Text Style options.

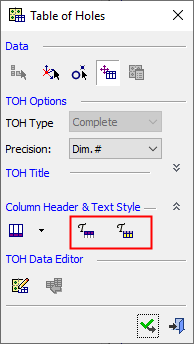

3. Press the Header Style button or Text Style button in the Table of Holes dialog (highlighted below).

   The relevant style change dialog is displayed:

   Header style change:	Text style change:

4. For both dialogs, select the required style changes:

   1. Select the required font from the dropdown list of available fonts. The five most recently used fonts are displayed at the top of the table:

   2. Choose whether to display the title/text in Bold , in Italics , or in Underline .

   3. Select the font size from the dropdown list or type in the required size:



   4. Click the Close button to exit the dialog. The changes are immediately implemented in the Table of Holes.
