Picking Feed Control Zone Surfaces
Access: Open this function from the following location:
-
Feed Control Zone Surfaces mode:
This geometry type only appears in the 5X Projection procedure and only when the Utility tab is opened.
Select the surfaces from the Utility tab.
The Geometry Table is displayed:
See Selecting / Unselecting Geometry.
See the cursor symbols in Cimatron when picking geometry.

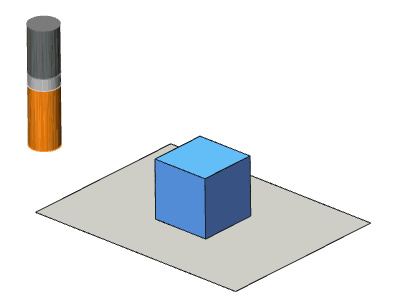

Feed Control Zone Surfaces define a volume within which a different feed rate can be set. The animation shows that the area where the actual stock is located has a different feed rate.
