Parting Face: Draft Angle
Optional Step 1

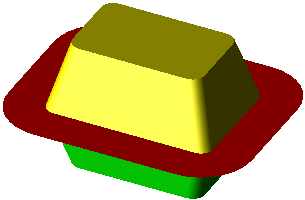

By default, a Parting Face has no draft angle.

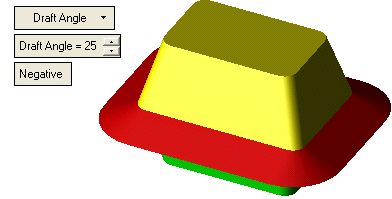

If you want to define a draft angle, click on the Draft angle = field and enter a value.

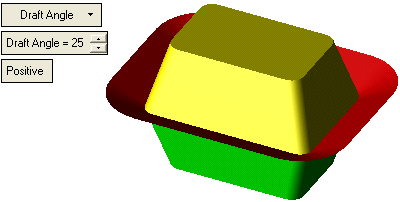

If the draft direction is incorrect, toggle Negative to Positive.
|
|
By default, a Parting Face has no draft angle.
If you want to define a draft angle, click on the Draft angle = field and enter a value.
If the draft direction is incorrect, toggle Negative to Positive.
|
