Save Configuration: Configuration Type

Access: Select MoldDesign > Mold Tools > Save Configuration from the menu bar.

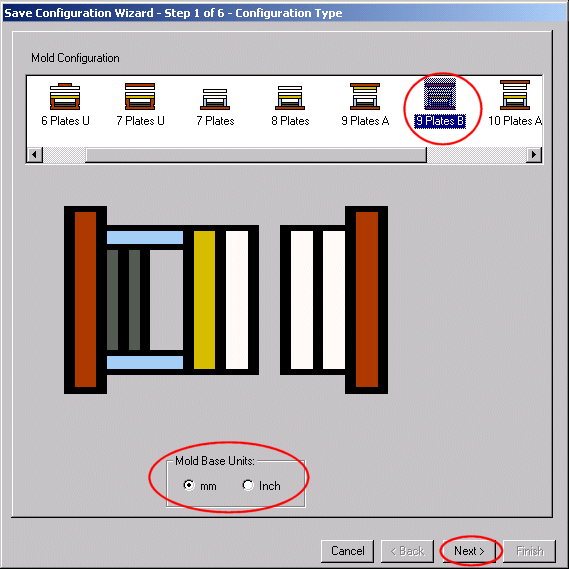

The Configuration dialog is displayed.

  1. Select the required plate configuration.

  2. Define the Units (mm / inch).

  3. Press Next. The Naming Components dialog is displayed.
