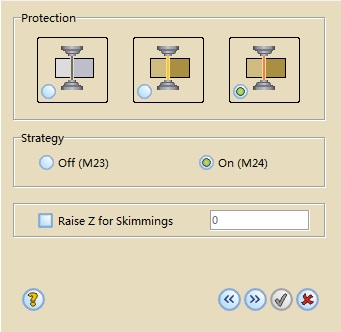

Step 3: Specific Parameters

In this step you have to select the options and values to adapt the NC files (please, refer to the equipment manual to get detailed information).

Protection: Parameter to protect the wire breakage. According to the selection the system will output M27, M28 or M29.

Strategy: Parameter to control corners and small radii. According to the selection the system will output M23 or M24.

Raise Z for Skimmings: Activating this option and setting a numerical value in this field, the system will output G91 G00 Zx (where x is the value defined by the user) at the beginning of the skim cuts.
