3D Step 3

1. Copy the procedure again. Change back to Finish: Mill All.
   However, this time select 3D Step as the Machining Method.


2. Execute the procedure and check the problematic areas again.

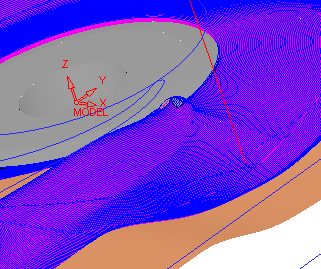

   View 1

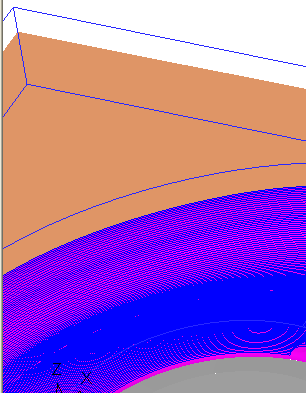

   View 2

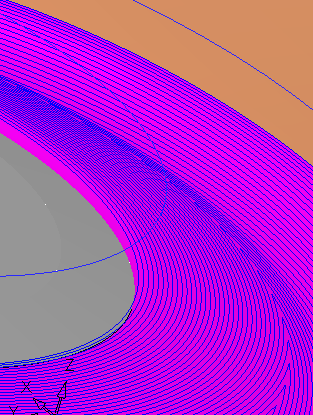

   View 3



   Not only is the toolpath smooth but we have avoided the connections between the layers and spirals.

3. Use 3D-Step to complete the part. Create appropriate cutters.

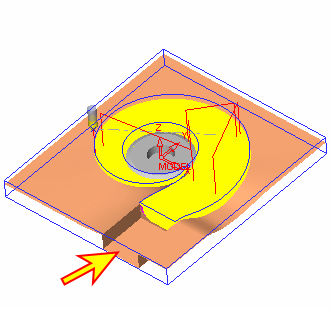

   The square area (marked by the RED arrow above) should not be milled with the rest of the “out” set.

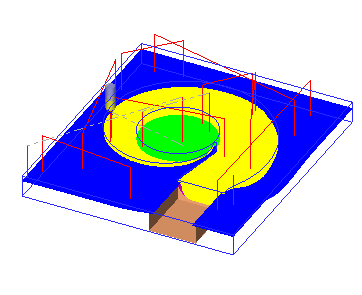

4. View the result in the 3D-Step-done.elt file.
