Compare the ECO1 With the Master

1. Hide the work file. Show the ECO1 file.

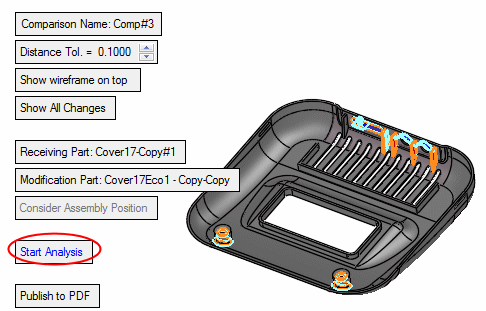

2. Edit the third comparison between the ECO1 and the master.

    Notice the new changed areas:

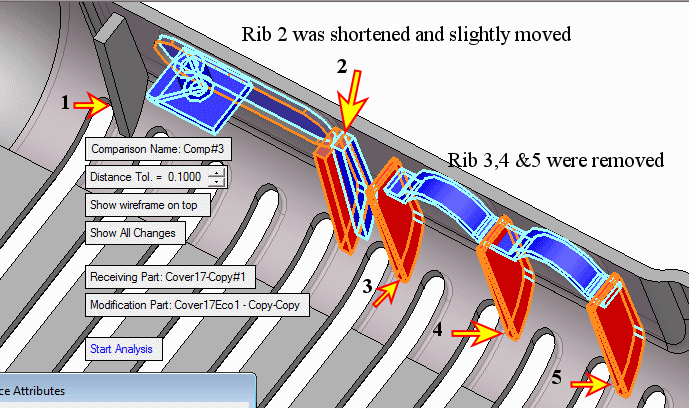

3. Zoom in to the rib area.
   Note that :

   • Rib 2 was shortened and slightly moved.

   • Ribs 3,4, & 5 were removed (no change to Rib 1).

   • Rib 2 and 3 are also the ribs that were mended in the work file (the second image below).


   • Mending was performed to Ribs 2 & 3:


4. Exit the comparison.
