Data To Steel ECO Advanced

Exact-Rough Compare Basic Concept

Exact-Rough Compare Unapplied Changes Step 1

The following exercise explains how to deal with changes of ECO applied on mended areas.

Before starting the exercise, in order to understand the Exact/Rough Compare of Unapplied Changes parameters, review the simple example below:

Images of a master and a work file are shown here:

Master	Work File

The work file includes mending job on the master (rounds and move of the right object as seen in the image below):

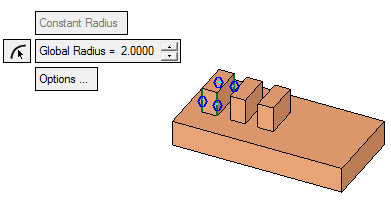

Mending job in the work file:	Work file before mending:

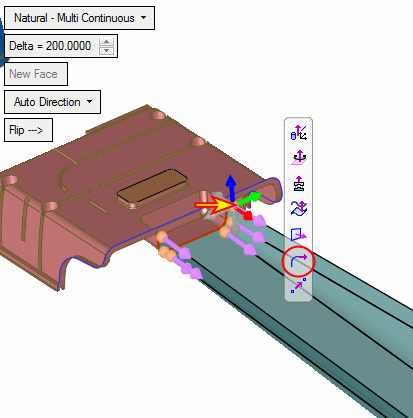

Mending job in the work file:	Work file after mending:
