Show Model Hidden

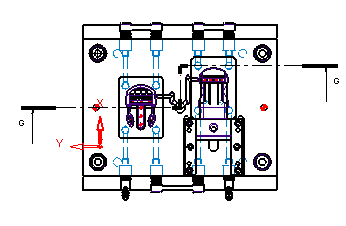

1. Create a section line on the Top view as indicated in the picture below:

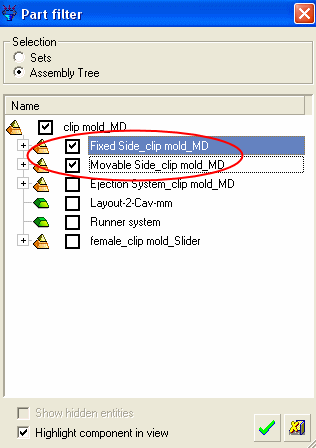

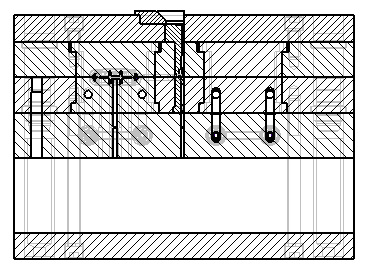

2. Create a section view.  In the part filter, select only the fixed and movable sidesfixed and movable sides.





3. Double-click the section view.

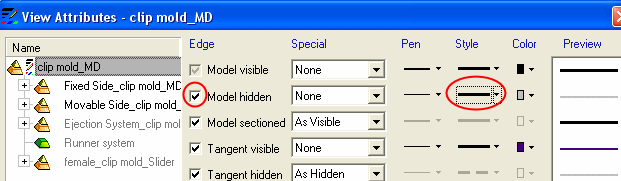

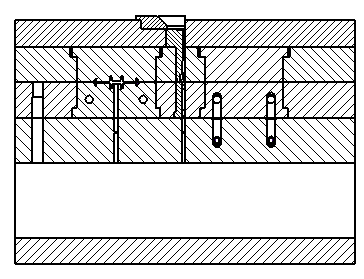

4. Change the View Attributes as follows:
