Show Unapplied Changes Since Previous
-

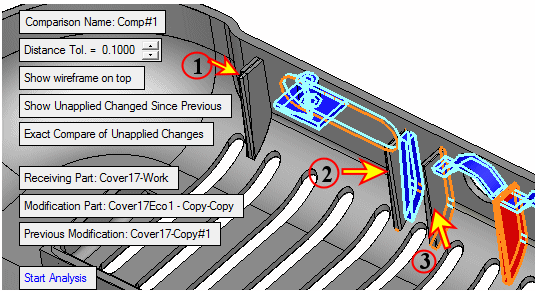

Toggle the option Show All Changes to Show Unapplied Changes Since Previous.
In this case, the system shows only the changes due to the ECO changes (Eco-Master - see the second image below) and ignores all the mending changes. As a result, Rib 1 is not included in the selection as it does not belong to the changes between ECO1 and the Master.
Although Ribs 2 & 3 do belong to the group of faces that were changed due to the ECO changes, they were not recognized as such and were not marked in RED. The reason for this behavior, as explained in the beginning of the exercise, is because the system could not find the exact faces in the work file as they were changed as part of the mending job.

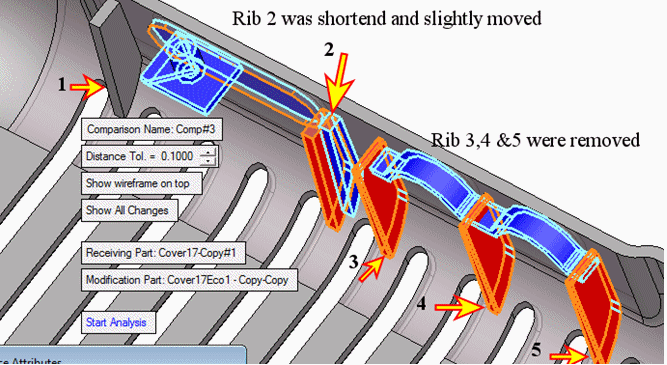

Changes between the ECO1 and the Master: Rib 1 was not changed; Rib 2 was shortened and slightly moved; and Ribs 3, 4, and 5 were removed.
