Assembly Tree
The Assembly Tree is a tool for viewing and controlling the contents of assemblies. Within the Assembly application, two trees are displayed:
-
The upper tree, the Assembly Tree, shows the components and constraints.
-
The lower tree, the Feature Tree, shows the assembly operations and features. This tree shows a list of features and operations that were created in the assembly environment. The operations can be managed directly from the tree.
Notes
-
For the Parting Application, an additional Parting Tree is displayed.
-
For all trees, an Auto Hide mechanism is used to move the tree to the left of the Cimatron window to increase the viewable display area.
-
Assembly Add operations (listed in the Feature Tree) show the name of the part being added; see the example below.
Assembly Tree

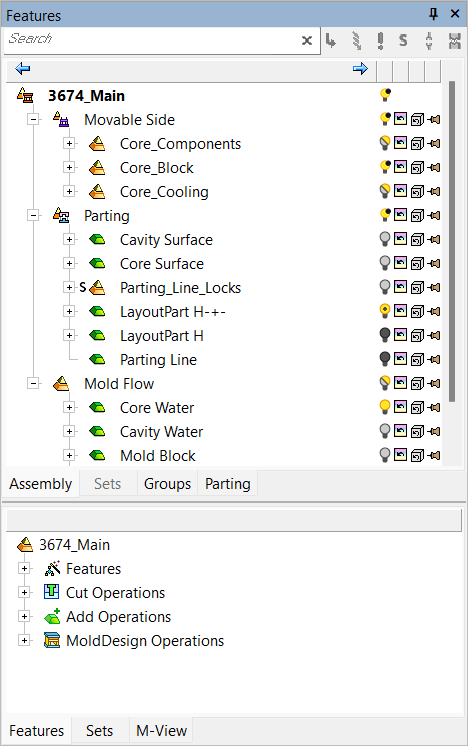

This image shows the Assembly Tree.
|
|
Click the links below to see more about each topic. |
|

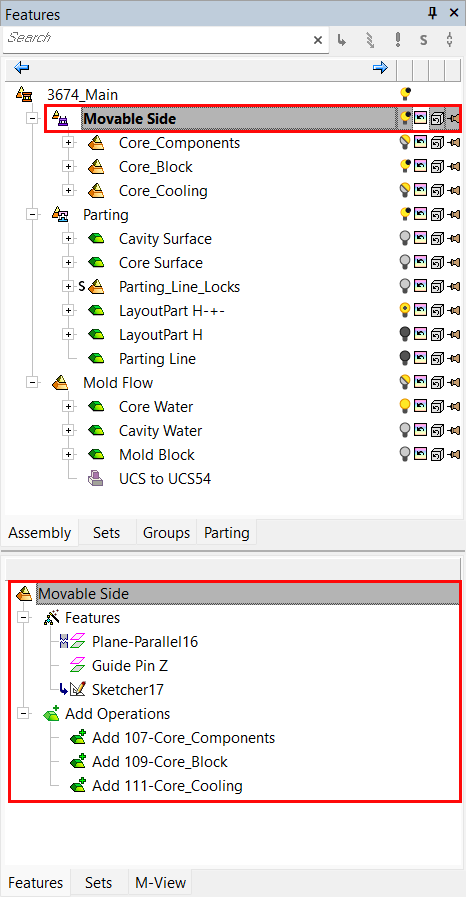

If an assembly component is activated in the Assembly Tree, the Feature Tree shows the assembly operations. |

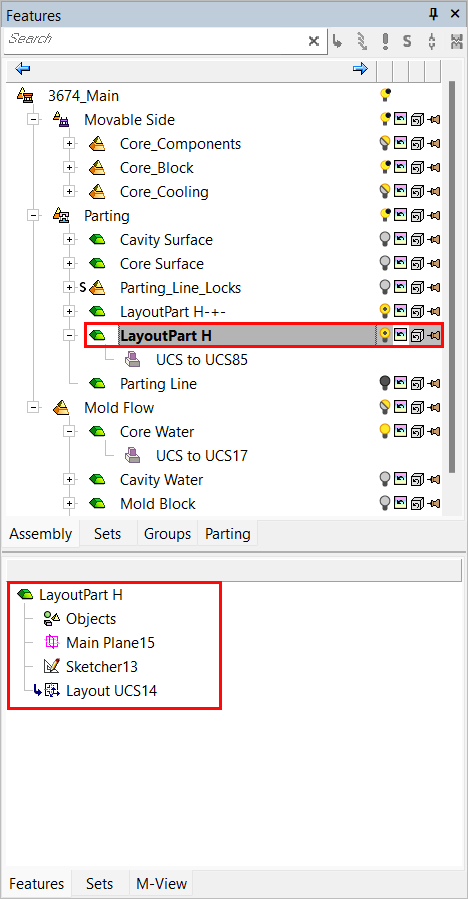

If a part component is activated in the Assembly Tree, the Feature Tree shows the part features (as in the Part application). |
|
|
|
|
