Assembly Tree Popup Operations

Assembly Tree popup submenus are displayed when you right-click on an item in the tree. The submenu varies according to the level of the item selected.

Note: Multiple assembly operations can be performed from the Assembly Tree.

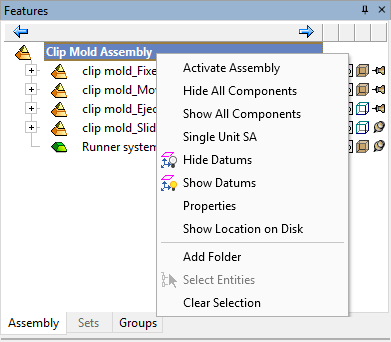

Main AssemblyMain Assembly (Mold )

Activate Assembly, Hide/Show All Components, Single Unit SA, Hide/Show Datums, Properties, Show Location on Disk, Add Folder, Select EntitiesSelect Entities (select all highlighted entities. This option is grayed out if entity selection is not applicable), Clear Selection.

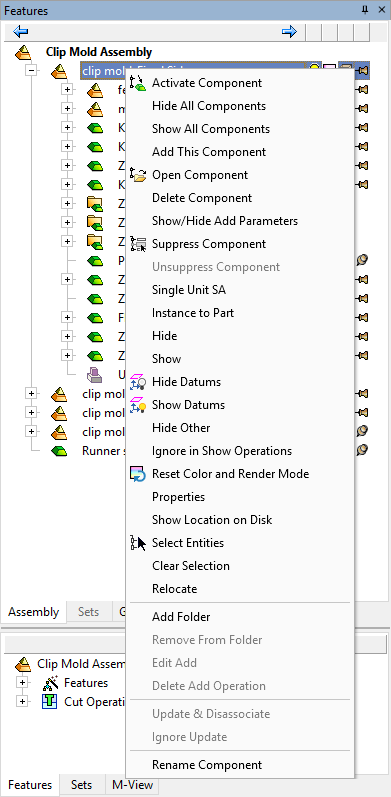

Sub-AssemblySub-Assembly (Mold )

Activate Component, Hide/Show All Components, Add This Component, Open Component, Delete Component, Show/Hide Add Parameters, Suppress/Unsuppress Component, Single Unit SA, Instance to Part, Hide/Show, Hide/Show Datums, Hide Other, Ignore in Show Operations, Reset Color and Render Mode, Properties, Show Location on Disk, Select EntitiesSelect Entities (select all highlighted entities. This option is grayed out if entity selection is not applicable), Clear Selection, Relocate Component, Add Folder, Remove From FolderRemove From Folder(remove the selected items from the folder to the same level as the folder; empty folders are not deleted. This option appears when invoking the popup menu on one or more features inside a folder (and only if all the selected features are inside the same folder)), Edit Add, Delete Add Operation, Update & Disassociate, Ignore Update, Rename Component.

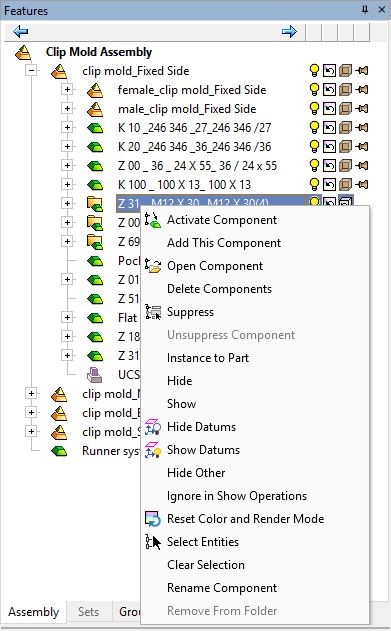

Instance FolderInstance Folder

Activate Component, Add This Component, Open Component, Delete Components, Suppress/Unsuppress Component, Instance To Part, Hide/Show, Hide/Show Datums, Hide Other, Ignore in Show Operations, Reset Color & Render Mode, Select EntitiesSelect Entities(select all highlighted entities. This option is grayed out if entity selection is not applicable), Clear Selection, Rename Component, Remove From FolderRemove From Folder (remove the selected items from the folder to the same level as the folder; empty folders are not deleted. This option appears when invoking the popup menu on one or more features inside a folder (and only if all the selected features are inside the same folder)).

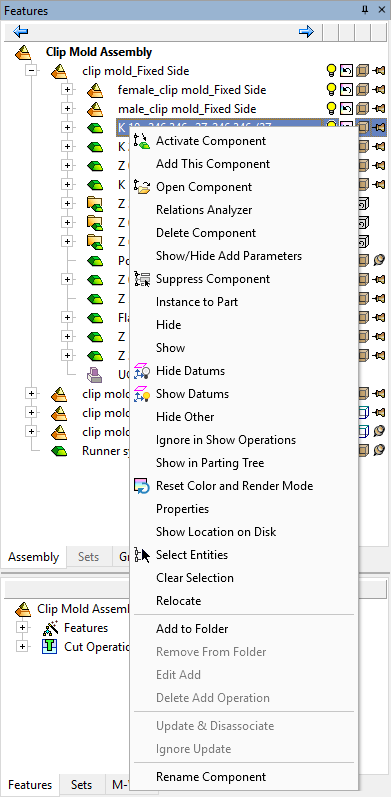

ComponentComponent

Activate Component, Add This Component, Open Component, Relations Analyzer, Delete Component, Show/Hide Add Parameters, Suppress Component, Instance To Part, Hide/Show, Hide/Show Datums, Hide Other, Ignore in Show Operations, Show in Parting Tree, Reset Color & Render Mode, Properties, Show Location on Disk, Select EntitiesSelect Entities(select all highlighted entities. This option is grayed out if entity selection is not applicable), Clear Selection, Relocate Component, Add to Folder, Remove From FolderRemove From Folder (remove the selected items from the folder to the same level as the folder; empty folders are not deleted. This option appears when invoking the popup menu on one or more features inside a folder (and only if all the selected features are inside the same folder)), Edit Add, Delete Add Operation, Update & Disassociate, Ignore Update, Rename Component.

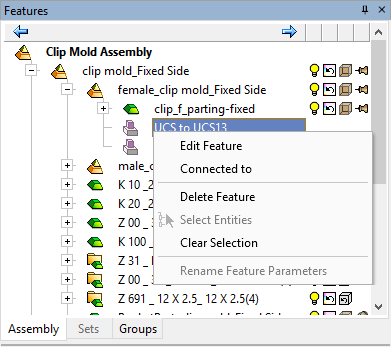

Connect RelationConnect Relation

Edit Feature, Connected to, Delete Feature, Select EntitiesSelect Entities(select all highlighted entities. This option is grayed out if entity selection is not applicable), Clear Selection, Rename Feature Parameters.

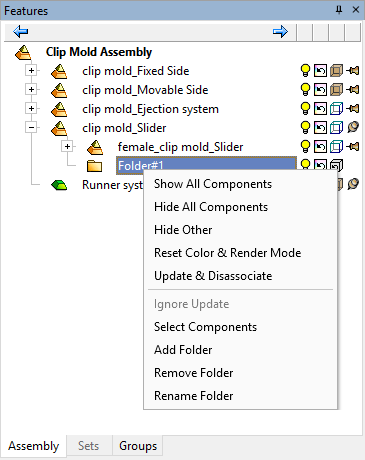

FolderFolder

Hide/Show All Components, Hide Other, Reset Color & Render Mode, Update & Disassociate, Ignore Update, Select ComponentsSelect Components(Select all components under the folder), Add Folder, Remove FolderRemove Folder( Delete the selected empty folder(s); this option is available when right-clicking on one or more empty folders (The keyboard Delete key does not work as a shortcut for this operation, that is assigned to the Explode Folder function) / Explode FolderExplode Folder Delete the folder but not its contents—The keyboard Delete key can also be used. The contents are placed at the bottom of the sub-assembly in the order they were in while in the folder. A confirmation message is displayed before performing this operation. , Rename FolderRename Folder(Rename the folder).

Add Folder / Add to Folder

See also: Add Folder function.

Hide/Show All Components

Hide or show all the components in the main assembly or sub-assembly.

Note: These options appear in the Assembly Tree in the main assembly and sub-assembly popup submenus.

Applying Hide/Show All Components will affect all the components of that sub-assembly.

If the sub-assembly is activated:

1. The status of the sub-assembly show icon is not affected by the operation. If Hide All Components is applied on an activated sub-assembly, all the components within the sub-assembly are hidden and their display icons are OFF  but the display icon at the sub-assembly level in the tree is not affected and appears ON .

2. The visibility status of internal entities (Sketches and Datums) does not change. If Hide All Components is applied on an activated sub-assembly, all the components within the sub-assembly are hidden except for the Sketches and Datums.

If the sub assembly is not activated, the status of whole sub-assembly is changed and internal entities are also hidden/shown.

See also: Hiding and Showing Entities.

Related Topics

• Assembly Tree Operations
• Hide / Show

Selecting multiple nodes in the Assembly Tree

Assembly operations can be performed on multiple nodes in the Assembly Tree. These nodes can be one of the following:

• Multiple components

• Multiple connects

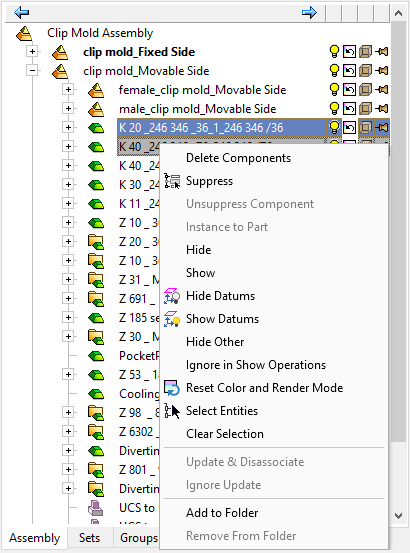

Multiple components

Components from one level can be selected. The selection can include parts, sub-assemblies, and folders of instances at the same time. There is no limit to the number of selected components.

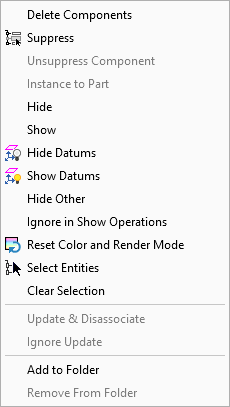

When selecting multiple components, the following popup submenu operations are available:

Delete Components Suppress components Unsuppress Component Instance To Part Hide / Show Hide Datums / Show Datums Hide Other Ignore in Show Operations Reset Color and Render Mode Select EntitiesSelect Entities(select all highlighted entities. This option is grayed out if entity selection is not applicable) Clear Selection Update & Disassociate Ignore Update Add to Folder Remove From FolderRemove From Folder (remove the selected items from the folder to the same level as the folder; empty folders are not deleted. This option appears when invoking the popup menu on one or more features inside a folder (and only if all the selected features are inside the same folder))

Multiple connects

Connect features from one level can be selected. Connects from a folder of instances are considered as the same level as other parts in the same sub-assembly.

When selecting multiple connects, the following popup submenu operations are available:

Delete Feature Select EntitiesSelect Entities(select all highlighted entities. This option is grayed out if entity selection is not applicable) Clear Selection
