Bounded
: Variable Free/Smooth Edges
Create a face bounded by a contour.
The boundaries can be defined by a sketch, edge, curve or composite curve.
The following parameters are displayed, depending on the option selected:
|
|
|
|
There are instances where it is necessary to attach varying Free or Smooth constraints to specific edges to obtain the required result. This is done by picking the small hexagonal points and attaching Free or Smooth constraints accordingly.
|

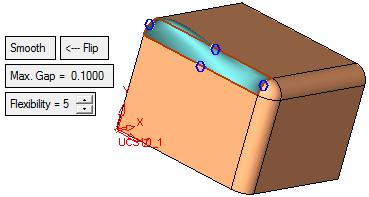

In the following example all the edges are Smooth: |
Pick the hexagonal point to attach an individual Free constraint: |
The picked edge is now free and the desired result is achieved: |
|
|
|
|
|
