Catalog Hide Cutting Object

Access: Open this function from one of the following locations:

  • Activate a part in the Assembly Tree and then select Catalog > Cutting Object > Hide Cutting Object from the Part menu bar.

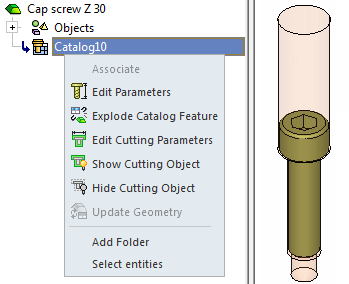

  • Activate a part in the Assembly Tree, right-click on the Catalog feature in the Feature Tree and select Hide Cutting Object from the popup menu.

Hide the cutting object(s).

Note: This option is available only when a cutting object exists.

OpenOpen (for more, click Access at the top of this Help topic) this function to hide the cutting object:

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
