Catalog Location

Access: Open this function from the following location:

  • Cimatron Control Panel: Select Start > All Programs > Cimatron > Cimatron Control Panel.

    Select Settings > Catalog Location.

This tool enables you to set the location of your user-defined catalogs.

The default location for Catalogs supplied by Cimatron is in the following folder:

...\Cimatron\Catalogs

When loading a file, if catalog parts cannot be found at the default location, the system looks for them in your user-defined catalog folder location. If the system still cannot find the required catalog parts, the Reconnect dialog is displayed.

This function enables you to change this default location.

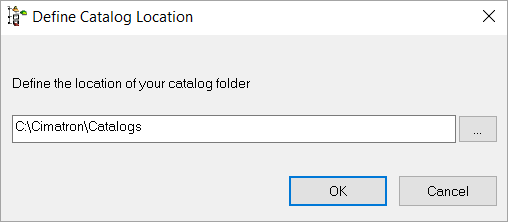

The Define Catalog Location dialog is displayed showing the currently defined folder location:

To set the location for your user-saved files:

InvokeInvoke (for more, click Access at the top of this Help topic) the Define Catalog Location tool.

Enter the location of your user-defined catalog folder, either by using the Browse button or by typing in the full path name.

Press OK.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
