Face-Curve Fillet : Spline Transition

Create a fillet that is tangent to a set of smooth faces and goes through a curve.

The following example shows how the results change when the Constant Radius or Variable Radius parameter is selected. (Note that selecting the Variable Radius parameter also displays the Spline Transition / Linear Transition toggle parameter.)

The example below shows Spline Transition. For additional examples, see:

Displaying a spline transition

  1. PickPick(left mouse button) the face and then exitexit(middle mouse button).

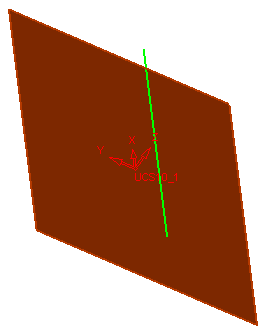

  2. Pick the line.

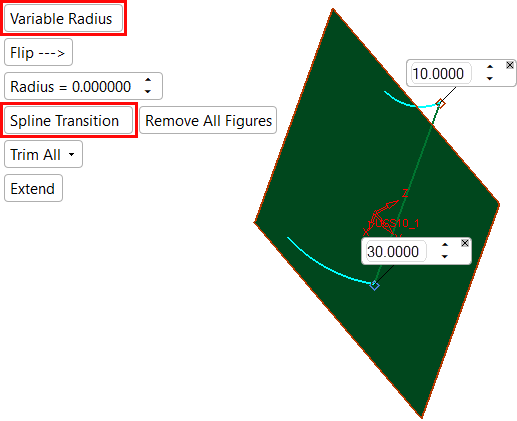

  3. ExitExit(middle mouse button). The following is displayed. Ensure is selected and enter a value for the  parameter if needed. Next, toggle to select the parameter.

  4. Click OKOK or ApplyApply in the Feature Guide to complete the function. The results are displayed.
