Chamfer Dimensions
Access: Open this function from one of the following locations:
-
Click
in the toolbar. -
Select Symbols > Textual > Dimension from the menu bar.
-
Select Dimension on the popup menu (right-click the graphics pane area).
Create Chamfer dimensions.
|
Chamfer Dimension dialog Click on an item in the dialog for a description. See below for additional information. |
Example Chamfer dimension |
|
|
|
See the Advanced Area Options below.
Creating Chamfer dimensions
InvokeInvoke the Dimensions function. A grayed-out dialog is initially displayed.
See the Dimensioning Process for additional information.
Pick 3 lines to create chamfer dimension.
Position the dimension.
Edit its parameters with the help of the hot spots and tips either directly in the graphics pane area or on the popup submenu. Change font style
and character size also if required.
To complete the current operation and remain in the dialog, select Apply
or <exit><exit>.
To exit the function, select Close
.
Note: For additional information, see the Dimensioning Process and the attached notes.
Dimension dialog for Chamfer dimensions
|
The Dimension dialog displays the relevant labels and values Click on an item in the dialog for a description. |

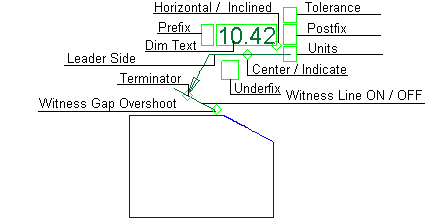

Example Chamfer dimension labels Click a label for a description. |
|
|
See Dimension Overview for a general description. |
Advanced Area options

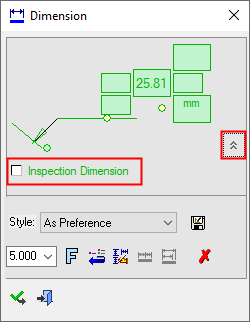

All Dimension dialogs have an Advanced Area where additional dimension options are available. Click the Expand toggle button
on the Dimension dialog to show the Advanced Area parameter(s).
The Inspection Dimension option appears in all the Dimension dialogs; however, additional options may also appear here depending on the entity selected to be dimensioned.
|
Inspection Dimension |
Surround dimensions with a rounded outline. This means that it is a dimension that should be inspected/verified after production.
|
|
