Displaying Threads and Ejectors in a Drafting View

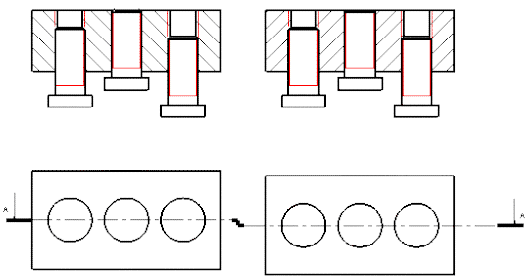

This feature displays a simplified representation of threads and ejector pins in views.

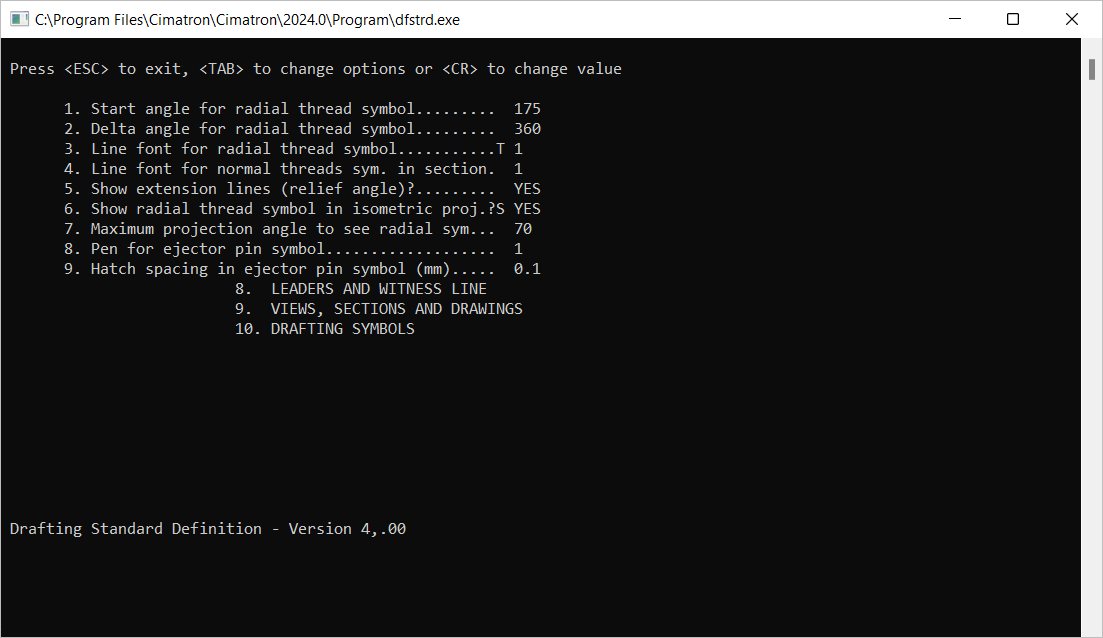

To change the Thread and Ejector Pin display attributes, run the dfstrd.exe file located in the following directory.
To change the Thread and Ejector Pin display attributes, run the dfstrd.exe file located in the following directory:
...\Program Files\Cimatron\Cimatron\2026.0\Program\
The Thread and Ejector Pin attributes are defined in the View Attributes dialog.
|
