Editing the Catalog Table
Access: Display the Cimatron Explorer in Manager View. The catalog part table can now be edited.
The catalog table can be edited by displaying the Cimatron Explorer in Manager View.
Editing Columns

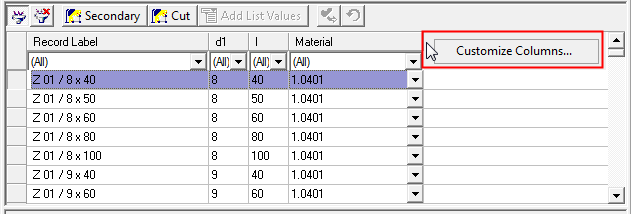

Right-click the column header section and select the Customize Columns option.
The Column Chooser dialog is displayed. The interaction of this dialog is very similar to the dialog that is displayed when saving as a catalog part.
Click OKOK
when finished.
Editing Values

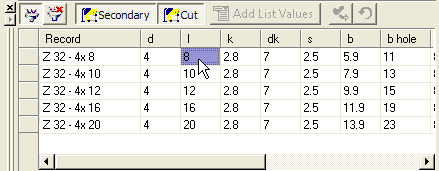

Double-click the table entry to enter the edit mode.

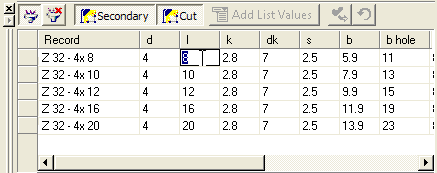

Edit the text.

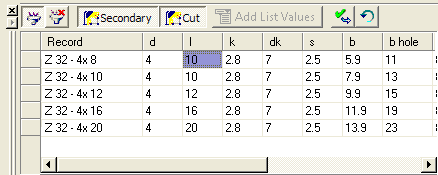

When you press Enter, the ApplyApply
and UndoUndo
buttons become active. Select the appropriate option to accept or reject the changes respectively.
Note: When a catalog part is write protected (marked as 'read only'), all editing operations are disabled.
|
