Hide/Show Analysis Marks

Access: Open this function from one of the following locations:

Select Parting Analysis Tools > Hide/Show Analysis Marks from the Mold Design Guide Toolbar.
Select Analysis > Geometry Inspection > Hide/Show Analysis Marks from the menu bar.
Select Mesh > Validation > Hide/Show Analysis Marks from the menu bar.

Hide or show the analysis marks created by the last used analysis operation. The markings are areas indicated as problematic during the analysis.

To hide or show the results of the analysis, re-invokere-invoke (for more, click Access at the top of this Help topic) the Hide/Show Analysis Marks function, as required.

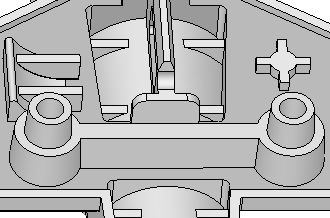

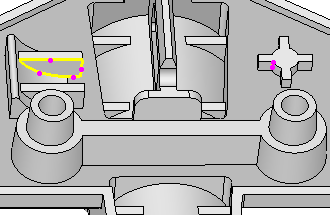

Show Marking Analysis:	Hide Marking Analysis:

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
