NC Assistant

Access: Open this function from one of the following locations:

Select View > Pane > NC Process Assistant from the menu bar.
Select Tools > Main Tools > Preferences from the menu bar to display the Preferences Editor dialog and then navigate to NC > General Preferences.

The NC Assistant displays a graphical representation of various parameter options, thereby assisting you in defining the correct parameter settings.

Set the NC Assistant in the NC Preferences.

Example

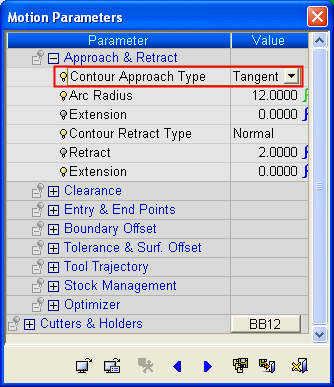

Defining parameters in the NC procedure parameter tables without the NC Assistant active.

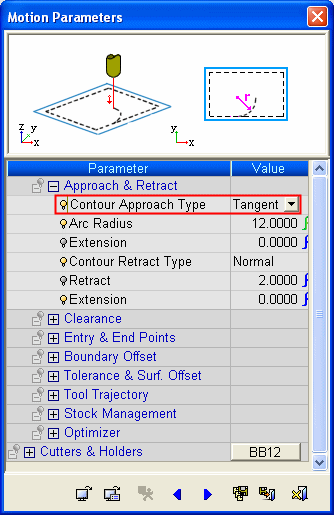

Defining parameters in the NC procedure parameter tables while using the NC Assistant active.

Notice the graphical representation of various parameters options, in this case the various Contour Approach options.

If a graphical representation of a parameter option does not exist, the following is displayed instead:

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
