Entry End: Multi Pocket Entry

Multi Pocket Entry

For User-Defined Entry Points, choose between the following:

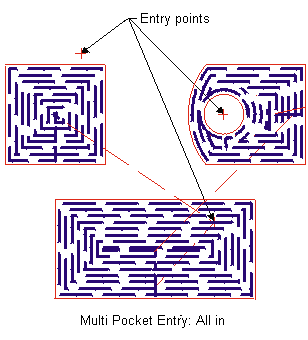

All In	User-defined entry points that are outside the pockets or within islands will not be used. Illustration Illustration

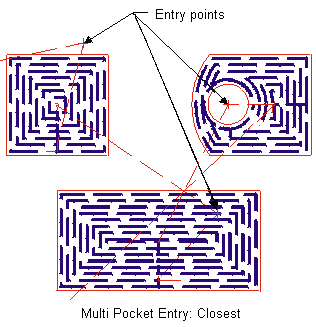

Closest	The user-defined entry point closest to the Auto Entry point (system-generated point) will be used. Illustration Illustration

This parameter is set in the Entry & End Points section of the Procedure Parameter Table.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
