Entry and End Points Parameters
Most procedures have general Entry & End Points parameters, which are shown in the tables below.
The Entry & End Points branch enables you to define the level of control over its use and over the display of the parameters in the branch. The following branch options are available:
Optimized (default option)
Advanced
Note: The Advanced option is only available for the following procedures:
Click here for a complete list of parameters in this table.
Entry and End Points parameter table examples
Click on the following procedures for an example of the procedure's Entry and End Points parameter table:
5X Trimming
Plunge Mill
Rough Spiral
VoluMill Pocket
VoluMill Rough

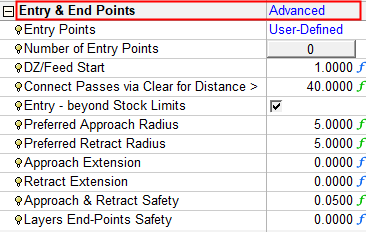

Branch option: Advanced
For a parameter description, click on a parameter in the dialog image below.
Depending on the procedure and your parameter settings, some parameters may not be available or other parameters may be displayed.
|
|
See the Notes under Layers Connection - Advanced.

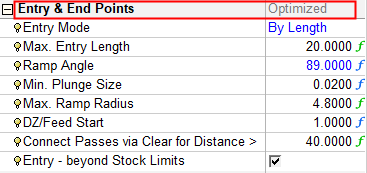

Branch option: Optimized
The default display for this branch is Optimized.
For a parameter description, click on a parameter in the dialog image below.
Depending on the procedure and your parameter settings, some parameters may not be available or other parameters may be displayed.
Specific parameters are displayed for certain procedures:
Plunge Mill Entry & End Points parameters
5X Trimming: Entry & End Points Parameters

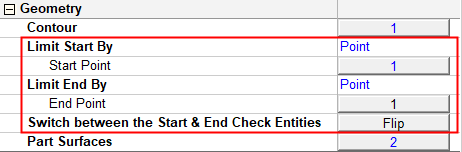

In 5X Trimming procedures, the relevant parameters are displayed in the Geometry Parameters Table after picking geometry.
For a parameter description, click on a parameter in the dialog image below.
Depending on the procedure and your parameter settings, some parameters may not be available or other parameters may be displayed.
Plunge Mill: Entry & End Points Parameters
In Plunge Mill procedures, the following parameters are displayed, DZ Length, Entry Length, End Length. These relate to the Machine parameters that are specific to Plunge Mill.
For a parameter description, click on a parameter in the dialog image below.
Depending on the procedure and your parameter settings, some parameters may not be available or other parameters may be displayed.

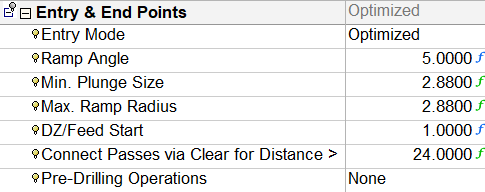

Rough Spiral: Entry & End Points Parameters
In Rough Spiral procedures, the following parameters are displayed.
For a parameter description, click on a parameter in the dialog image below.
Depending on the procedure and your parameter settings, some parameters may not be available or other parameters may be displayed.

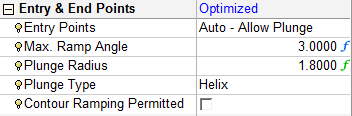

VoluMill Pocket: Entry & End Points Parameters
In VoluMill Pocket procedures, the following parameters are displayed.
For a parameter description, click on a parameter in the dialog image below.
Depending on the procedure and your parameter settings, some parameters may not be available or other parameters may be displayed.
VoluMill Rough: Entry & End Points Parameters
In VoluMill Rough procedures, the following parameters are displayed.
For a parameter description, click on a parameter in the dialog image below.
Depending on the procedure and your parameter settings, some parameters may not be available or other parameters may be displayed.
General Notes about Parameter Tables
|
