Entry End: Pocket Profile Order

Pocket/Profile Order

In the case of multiple pockets/profiles, specify the order in which the pockets/profiles will be milled.

Note: The By X, By Y and Closest options are automatic mechanisms that ignore the contour's order number defined in the Contour Manager.

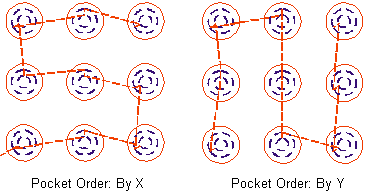

By X	Pockets/profiles will be milled in the +X direction.
By Y	Pockets/profiles will be milled in the +Y direction.
Closest	The pocket/profile closest to the starting location of the cutter will be milled first.
No Sort	No automatic ordering; the order will be according to the contour's order number, as defined in the Contour Manager.

(This parameter is set in the Entry & End Points section of the Procedure Parameter Table.)

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
