Chamfer Parameters

Below are some of the chamfer-specific parameters.

Set Angle from Cutter

If this checkbox is ON (the default setting), the Chamfer Angle value is set by the cutter's conic angle. If the cutter has no conic angle (zero), the Chamfer Angle is set to 45 degrees. In both cases, the Chamfer Angle value is grayed out, but displays the correct angle.

If this checkbox is OFF, manually set the Chamfer Angle.

Chamfer Angle

Angle of the chamfer.
Default: 45°.

Contour Z Delta

The delta distance above or below the Contour Z value where milling is to begin.

Contour Z

The Z value of the upper contour of the chamfer. This is actually the Z-Top parameter.

Chamfer Height

The Z distance between the top and bottom contour.
Default: 1.0mm.
Range: 0.001-9999.9mm.

Chamfer Bottom Delta

The delta distance above or below the Chamfer Z value where milling is to stop.

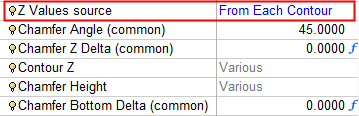

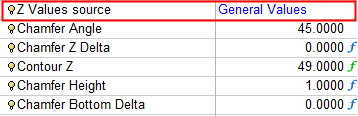

See also Z Values Source.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
