Outside-In Parallel

When this checkbox is marked , enable the procedure to parallel machine bidirectionally in Climb or Conventional mode.

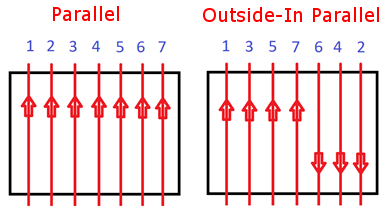

For example, the milling order of the passes in Climb mode would be as follows (each region is milled in By Pass mode):

This option is available in the Facing procedure, if Cutting Mode = Climb or Conventional and Machining Method = Parallel.

Default = OFF.
