Slot Extension Shrinkage

Used in the Slotting procedure, these parameters enable you to extend or shrink slot-shaped pockets, as required.

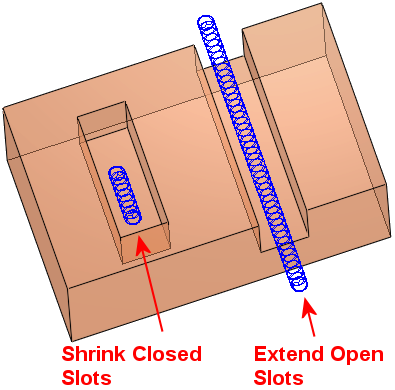

Extend Open Slots by

Extend open slot-shaped pockets to the defined amount, to mill additional stock, if available.

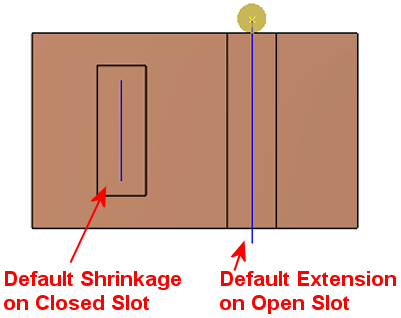

Default = 0.1*tldi, min = 0, max = tldi.

Shrink Closed Slots by

Shrink closed slot-shaped pockets to the defined amount,to leave some stock at the slot ends.
Default = 0, min = 0, max = tldi.



Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
