Pocket Manager: Show Pockets from Active Direction Only
Access: Open this function from the following location:
-
Click the Show Pockets from Active Direction Only option in the Pocket Manager dialog.
Only show pockets created on the active UCS direction.

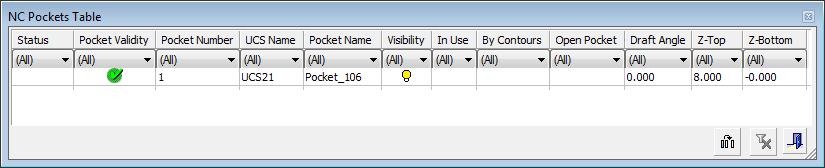

The Pocket Table dialog is shown below.
Each row in the table represents one pocket.
The table shows all the detected pockets; this total is also displayed in the relevant section of the Pocket Manager dialog, shown below.
The current display includes all detected pockets. These can be filtered out by using the Show Pockets from Active Direction Only option in the Pocket Manager dialog.

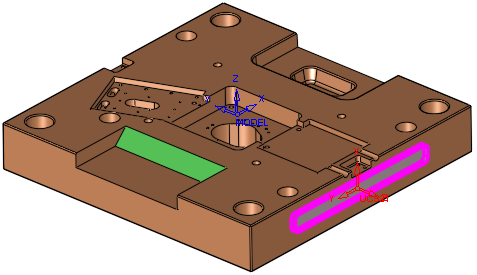

For example, if the Show Pockets from Active Direction Only option is ON, only pockets in the direction of the active UCS (set in the Pocket Manager dialog) are displayed. This can be seen in the Pocket Table, Pocket Manager and also the graphics pane.
|
|
|
Previously detected pockets are not deleted but are filtered out; switching the Show Pockets from Active Direction Only option to OFF will re-display relevant pockets.
|
