Preferences Drafting > Active Wireframe Geometry
Access: Invoke this function from one of the following locations:
-
Select the Preferences button
from the Quick Access Toolbar, or -
Select Tools > Main Tools > Preferences from the menu bar.
Navigate to Drafting > Active Wireframe Geometry.
Set the active sheet, view, and frame parameters.

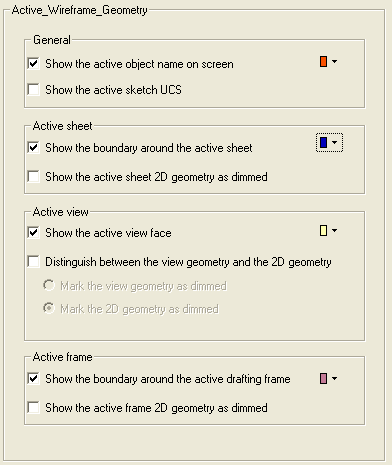

The Active Wireframe Geometry dialog is displayed.
Interaction
-
Set the required attributes. (To view the changes, you need to activate the object after changing the preferences.)
|
General |
Show active object name on screen Display the name of the active object (view or sheet) in the top left corner of the screen and define its color.
Show active sketch UCS Display the UCS of 2D geometry when inside the 2D Drawing Toolset. |
|
Active Sheet |
Show active sheet frame Display the frame (boundary) of the active sheet and define its color. Show active sheet 2D geometry as dimmed Display 2D geometry belonging to the active sheet as dimmed.
|
|
Active View |
Show active view face Highlight the active view in the defined color. (The default color is pale YELLOW.)
Make a difference between view geometry and 2D geometry Mark the active view geometry as dimmed
Or mark the 2D geometry belonging to the active view as dimmed
|
|
Active Frame |
Show active drafting frame frame Display the frame (boundary) of the active drafting frame and define its color. Show active frame 2D geometry as dimmed Display 2D geometry belonging to the active sheet as dimmed. |
-
Select the appropriate approval option.
|
