Drafting Preferences > View > Partial Section

Access: Invoke this function from one of the following locations:

Navigate to Drafting > View > Partial Section.

Define the default settings for the Partial Section parameters in the View Creation dialog.

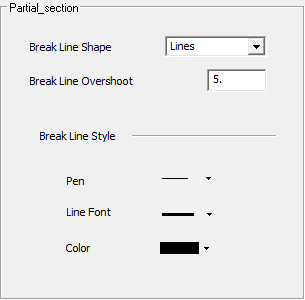

The Partial Section dialog is displayed.

Interaction

  1. Set the required partial section parameters. These parameters are identical to those appearing in the Broken View Preferences for the Break View function.

Break Line Shape

Set the shape of the break lines used for the clipping, from the dropdown list. The following shapes are available:

- Lines
- Waves
- Jogged Lines
- Single Jog Line

See Break View for examples of this parameter.

Break Line Overshoot

Set the distance beyond the geometry to which the break line extends.

See Break View for examples of this parameter.

Break Line Style - Pen

From the dropdown list of options, set the pen style of the break line.
Default = Pen 2.

Break Line Style - Line Font

From the dropdown list of options, set the line font style of the break line.
Default = Solid (1).

Break Line Style - Color

From the dropdown list of options, set the color style of the break line.
Default = Black.

  1. Select the appropriate approval option.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
