Electrode Preferences > Base > Stepped Base

Access: Invoke this function from one of the following locations:

Select the Preferences button from the Quick Access Toolbar, or
Select Tools > Main Tools > Preferences from the menu bar.

Navigate to Electrode > Base > Stepped Base.

Defines the default Offset and Height parameter values of the Stepped Base. These parameters set the height of the step and the size of the step offset for the blank.

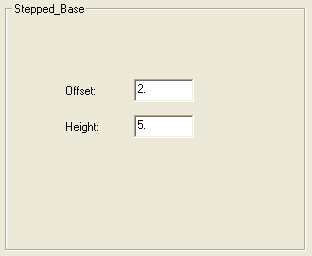

The Stepped Base dialog is displayed.

Interaction

Define the default parameter values for the Stepped Base.

Offset	Enter the default size of the step offset.
Height	Enter the default height of the step.

Press the appropriate approval option.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
