Electrode Preferences > Name Generator > Folder
Access: Invoke this function from one of the following locations:
-
Select the Preferences button
from the Quick Access Toolbar, or -
Select Tools > Main Tools > Preferences from the menu bar.
Navigate to Electrode > Name Generator > Folder.
Define the name of the Cimatron Explorer folder in which all the assembly components are stored. The Cimatron Explorer folder name is created automatically only if you use the Electrode Setup Wizard.

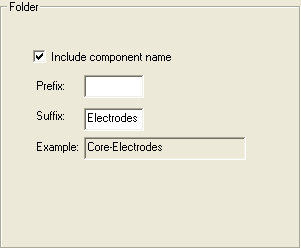

The Folder dialog is displayed:
Interaction
-
Define the name of the Cimatron Explorer folder in which all the assembly components are stored.
The Example field displays the structure and content of the folder name based on your definitions.
Examples:
|
Define a Suffix to be added to the folder name. |
Select the Include Component Name to add this to the folder name. |
|
|
|
-
Press the appropriate approval option.
|
