General Preferences > Add Picture Size

Access: Invoke this function from one of the following locations:

Select the Preferences button from the Quick Access Toolbar, or
Select Tools > Main Tools > Preferences from the menu bar.

Navigate to General > Add Picture Size.

Define the default picture size for the Add Pictures function.

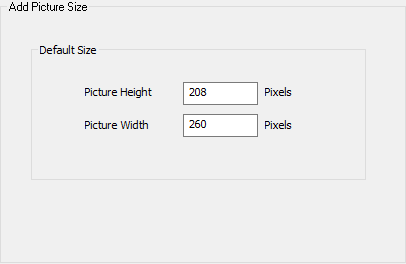

The Add Picture Size dialog is displayed.

Interaction

Set the following parameter:

Define the default picture size for the Add Pictures function.

The default size is Height: 208 pixels, Width: 260 pixels; change the default image size as required. The image size can be changed when capturing an image.

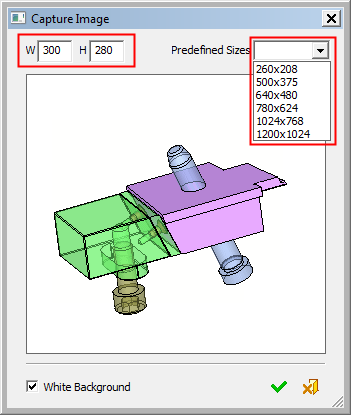

When capturing images using the Capture Image dialog, the image size can be changed in the following ways:

Edit the relevant Height and Width parameter(s) in the dialog.
Resize the window by dragging (the parameter boxes are updated automatically).
Select a predefined size from the dropdown list. These default sizes are stored in the file PictureToolDefaultSizes.ini, located in the folder:

...\Program Files\Cimatron\Cimatron\2026.0\Data\

This file may be edited as required.

Press the appropriate approval option.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
