Modeling Preferences > Assembly Mirror
Access: Invoke this function from one of the following locations:
-
Select the Preferences button
from the Quick Access Toolbar, or -
Select Tools > Main Tools > Preferences from the menu bar.
Navigate to Modeling > Assembly Mirror.
When using the Assembly Mirror function, define the mirroring default preferences.

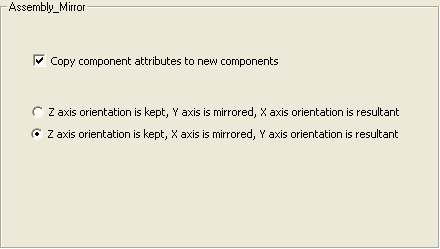

The Assembly Mirror dialog is displayed:
Interaction
-
Select the appropriate UCS orientation:
|
Copy component attributes to new components |
Copy the attributes of the original components to the new (mirrored) part or sub-assembly. The default setting is ON - selected. |
|
UCS Orientation of Mirrored Components |
Set the UCS orientation of the mirrored components. The Z axis is always kept, so either mirror the X or Y axis. |
-
Press the appropriate approval option.
|
