MoldDesign > Preferences > Cooling Label

Access: Invoke this function from one of the following locations:

Select the Preferences button from the Quick Access Toolbar, or
Select Tools > Main Tools > Preferences from the menu bar.

Navigate to MoldBase > Cooling Labels.

Define the default text to be used after a Cooling Label, instead of the In/Out text displayed after the 'main' label text.

The Cooling Label dialog is displayed.

Interaction

Set the required options:

Text for In

Define alternative text to be used instead of the words In or Out for the Cooling Labels function. This is relevant for the In, Out, and Alternate In/Out cooling label options.

If alternative text is defined, it is used; if it is not defined, then the In/Out text is used.

Text for Out

Press the appropriate approval option.

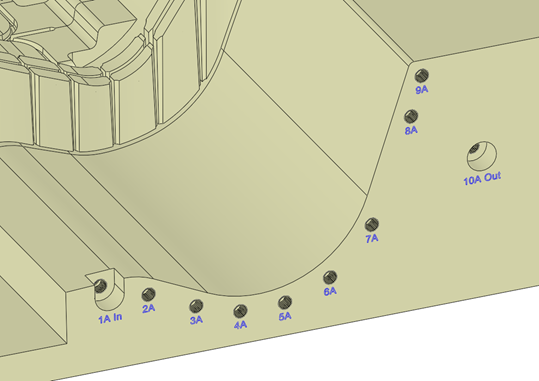

Cooling labels attached to cooling holes with relevant suffixes. Note the In/Out text used to label the entrance/exit, respectively, of the cooling channel holes.
